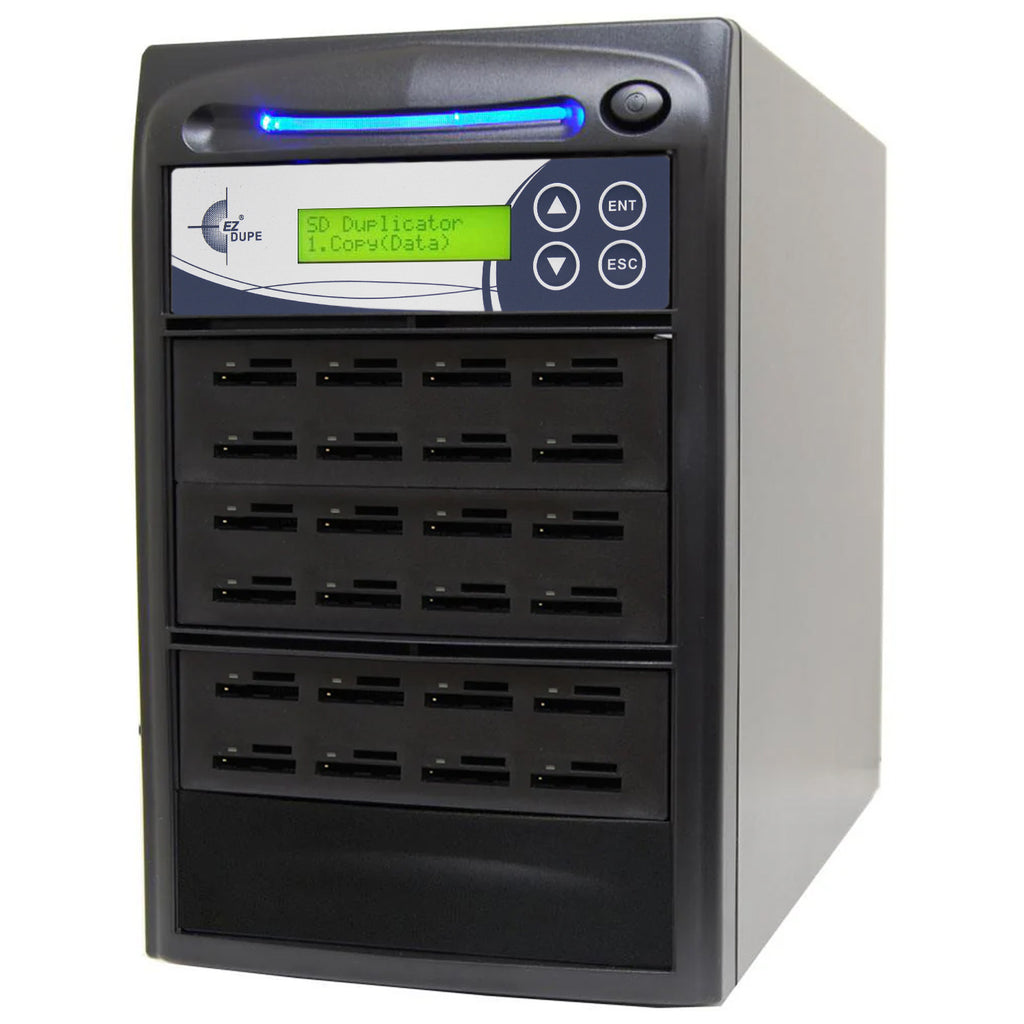

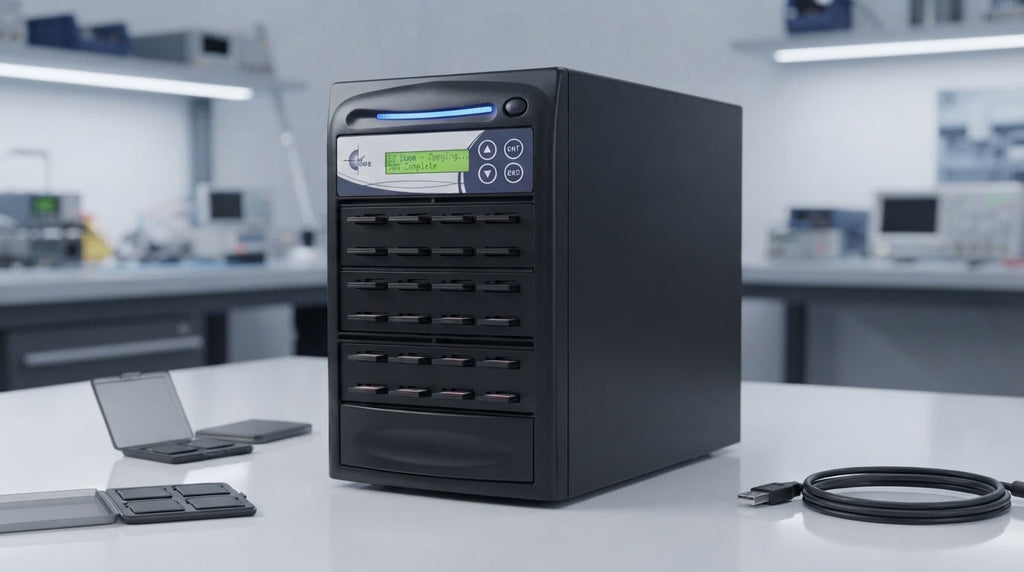

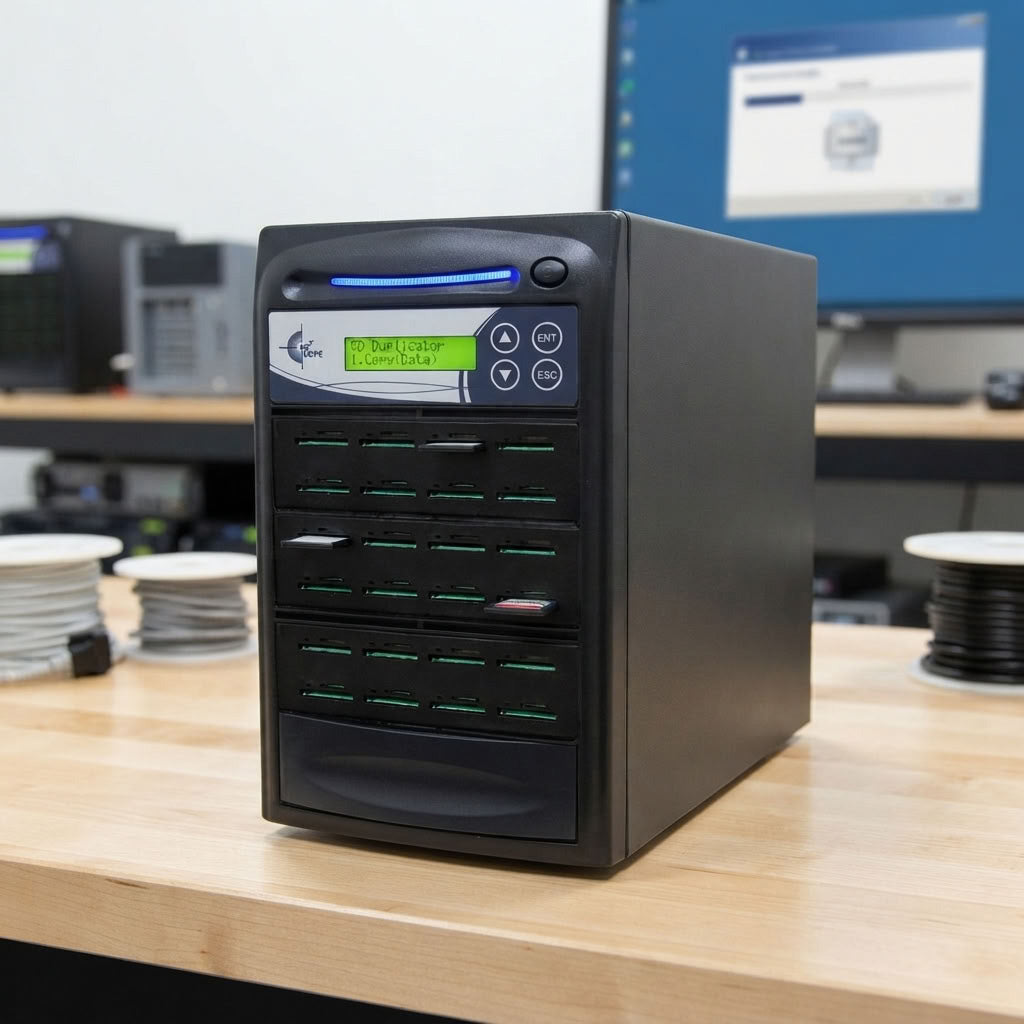

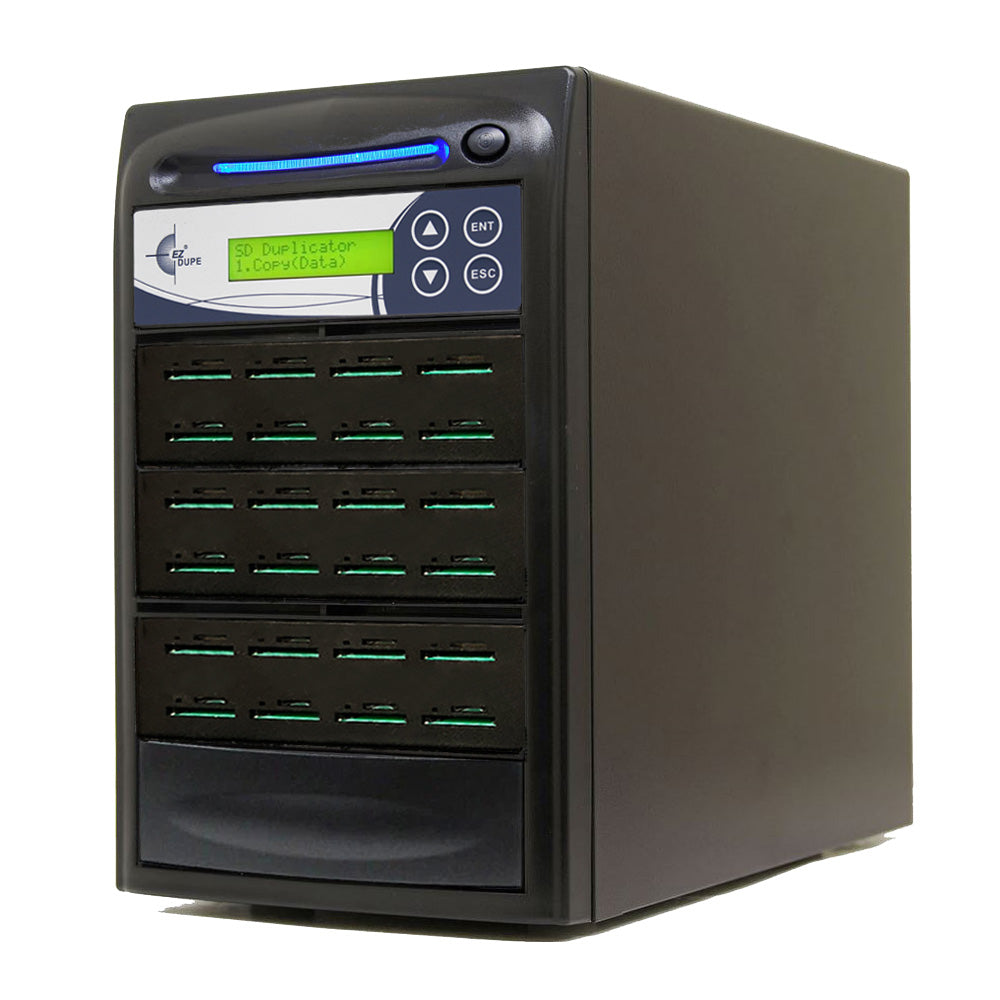

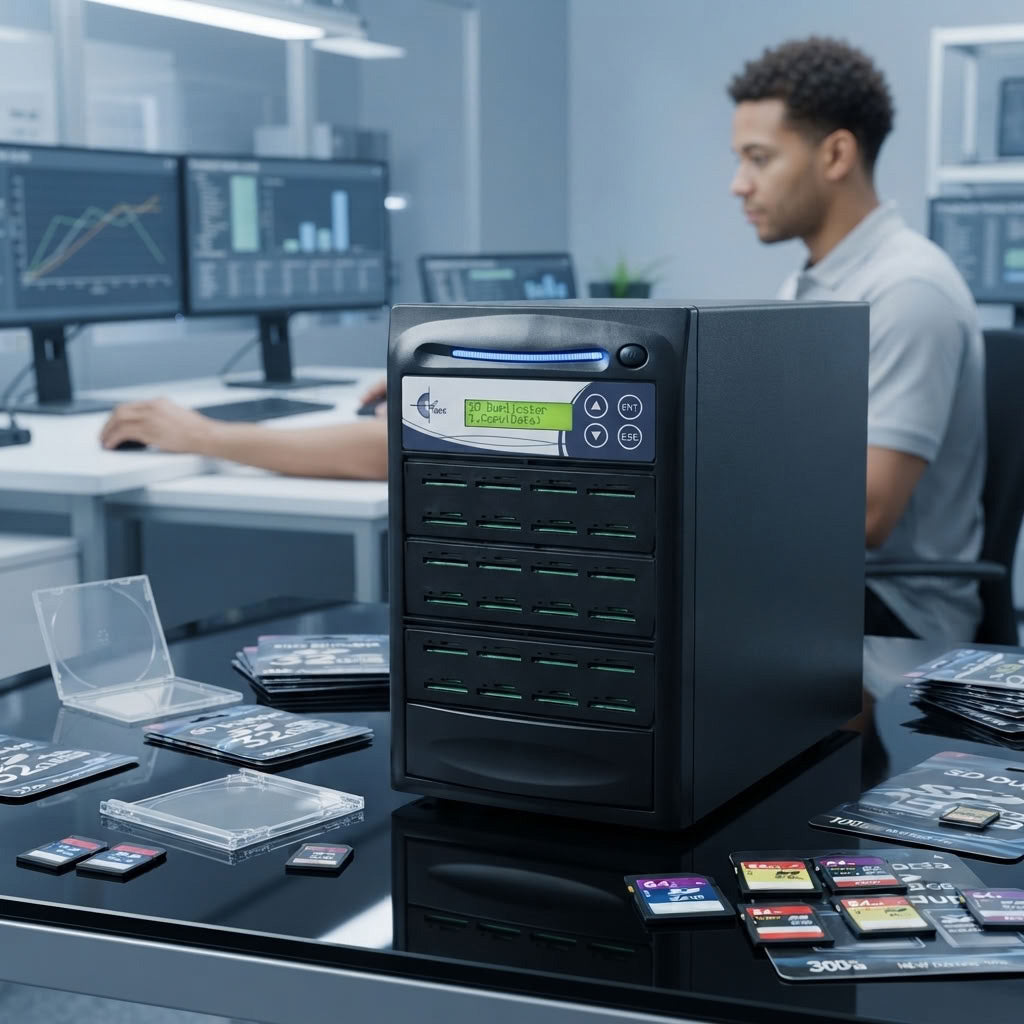

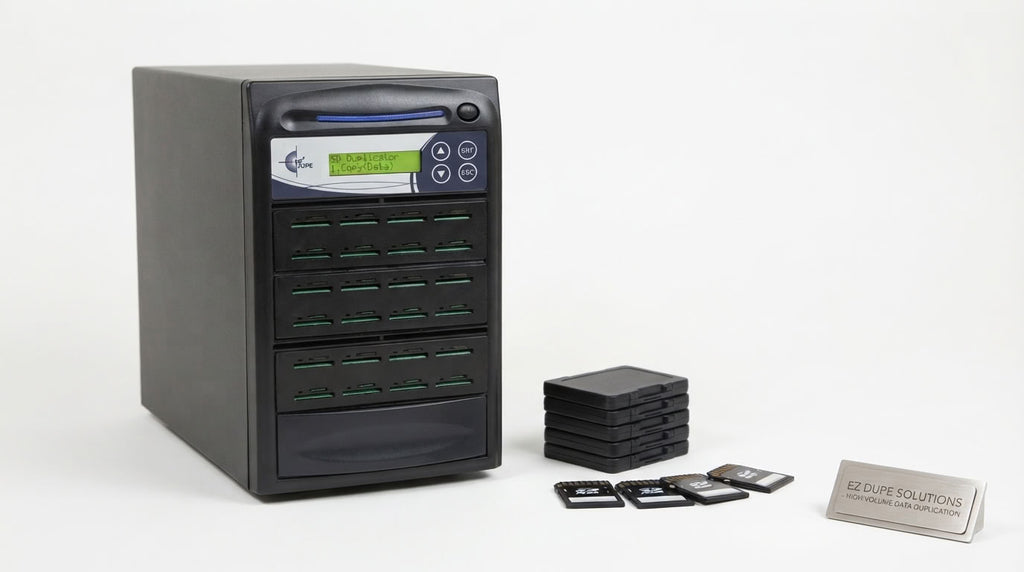

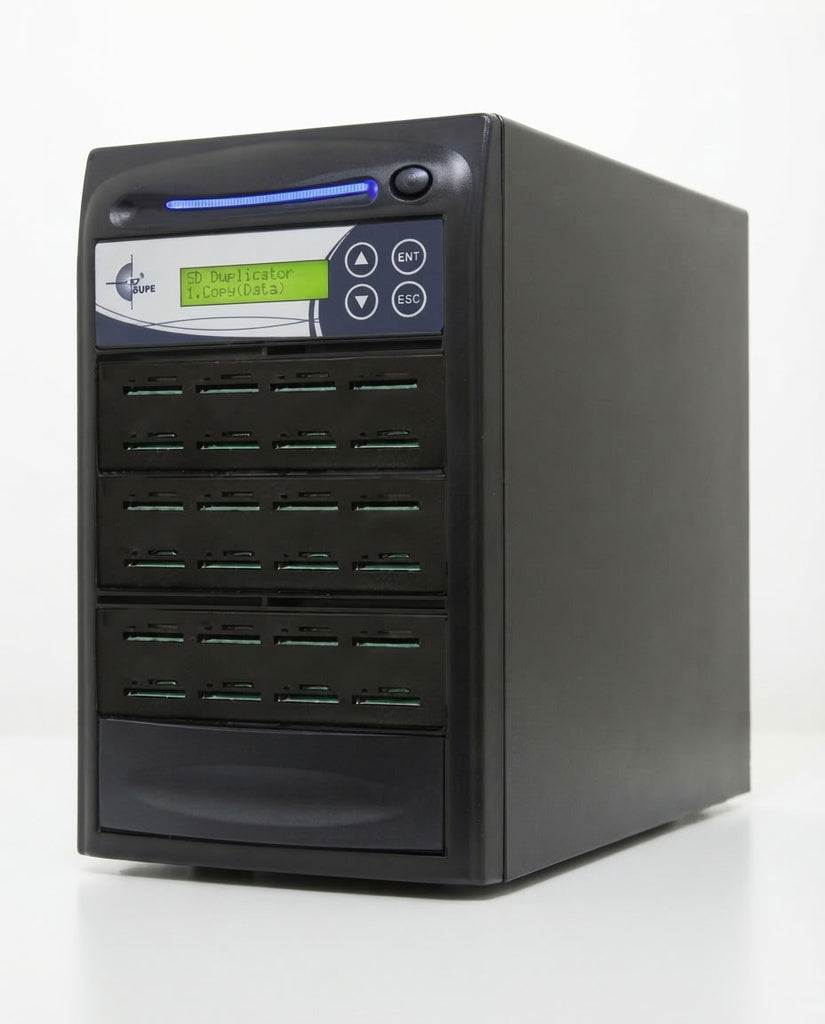

EZ Dupe Pantera 1 to 23 SD / MicroSD / TF Duplicator & Eraser (DoD Compliant)

EZ Dupe Pantera SD is the newest Secure Digital duplication systems in the market.

Blazing fast copy speed duplicators that can complete a large number of copies in a shorten amount of time. Each port is independent with copy speed of 35MB/S, enabling you to copy to multiple devices without losing speed.

EXCLUSIVE to EZ Dupe:

The newest features of Pantera series duplication units include more professional functions such as two new copy modes: Partitioned area copy, which allows you to copy partitioned area of the flash memory. Percentage copy, which allows users to set starting point of the copy and the end point.

Other exciting additions include an extra DoD compliant erase mode. The original 3-pass DoD erase mode which satisfy 5220.22-M data security standard of Department of Justice. Now comes the 7-pass erase function which comply with 5220.22-M ECE data security standard.

The Pantera duplicator features asynchronous copy that allows different SD or MicroSD (TF card) port (only one port per slot can be access) to start and end copying at different times, intelligent analysis copies only the data area and can greatly improve production efficiency.

Pantera 23 copies SD/microSD memory card duplicator features user friendly 4-key control panel with LCD, high speed duplication and bit-by-bit Compare function to confirm successful copies. It can copy both SD card and microSD card. Only carefully selected and tested materials are employed in EZ Dupe's professional line of SD duplicator.

• Highlights
• Features
• Specifications
• Download

* Easy-to-use One-Touch copy operation.
* Supports SD Card and microSD card (No adapters needed)
* High copy speed up to 35mb/second, the fastest speed on the market
* Two New Copy Functions: All Partitioned Copy & Percentage (set a start & end point copy)
* Allows measuring the actual Read & Write speed of the SD cards
* Capacity check to verify the SD card /microSD card capacity
* Intelligent copy mode to copy System and Files only, no need to copy the whole media and allowing you to do more in less time!
* Whole media copy mode to copy the SD card /microSD memory card bit by bit.
* Standalone system; no computer required
* Support all file formats, file size and card/drive capacity
* Support Synchronous and Asynchronous copy modes, the duplicator will start copy right away once the targets inserted, you don't have to wait for each port to start at the same time
* DoD compliant erase function permanently deletes sensitive data
* Formatting option: FAT32, exFAT
* Allows to set up a password for system boot-up to prevent unauthorized use.
* Firmware upgradeable.
* Free life time technical support with toll free phone number provided.

Copy Modes & Erase Modes

Copy Modes: Whole media copy - Comprehensive (Full Copy) Whole Media copy will copy the entire SD / MicroSD / TF memory card regardless of whether it has been partitioned or not. Longer Duplication Time is expected for full copy. System and Files Copy – Intelligent Copy (Quick Copy) System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the SD / MicroSD / TF memory card to save time. Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied.    All Partitioned Copy - Copy Partitioned Area Only  Example: a 600GB SD has two partitions. Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied   Percentage Copy - Setting up a starting point and end point  When the file system of a SD / MicroSD / TF memory card is undefined, Percentage Copy can be used by setting up the starting and ending point of data to copy.

Erase Modes:  Quick Erase - Essential Files Erase the index of a SD / MicroSD / TF memory card within a few seconds. Full erase - Entire Drive Erase the data from a SD / MicroSD / TF memory card by overwriting each sector which is able to read/write data. 3-Pass DoD Erase SD / MicroSD / TF memory card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense. 7-Pass DoD Erase SD / MicroSD / TF memory card 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.



Operating Type	Standalone (No PC Required)
Number of Copies	Up to 23 SD/MicroSD copies
Display	2 x 16 Backlit
Supported Media	Secure Digital SD SDHC SD Pro MicroSD (TF card) SD HS WI-FI SD Super HS SD Mini SD* Mini SD Pro* (*Adapter Required for Mini SD)
Transfer Speed	Up to 35mb per second (max speed depends on SD)
Copy Mode	Synchronous or Asynchronous
Copy Area	Full Copy - Whole Media Quick Copy - Essential Files *All Partitioned Copy - Partitioned area only *Percentage Copy - Set up Starting & End point copy *New Feature exclusive to EZ Dupe
Format Supported on Quick Copy	Window: exFAT, FAT16/32, NTFS  Linux: EXT2 / EXT3 / EXT4 Mac OS: HFS, HFS+, HFSX
Format Modes	FAT32 - For SD over 2GB but less than 32GB exFAT - For SD over 32GB
Compare Modes	Compare: compare the copied target devices against the source for accuracy Copy + Compare: allows duplicator to start Copy process first, then follow with "Compare" process immediately.
Erase Mode	Full Erase - Whole Media Quick Erase - Essential Files DoD 3-pass - 3 times erase in 5220.22-M standard DoD 7-pass - 7 times erase in 5220.22-M ECE standard
System Memory	128 MB
Power Requirement	115V - 230V
Operating Temperature	41°F - 122°F
Operating Humidity	15% - 90%
Model	SDC23-SSP
Gross Weight	25
Package Dimensions	13x16x22
