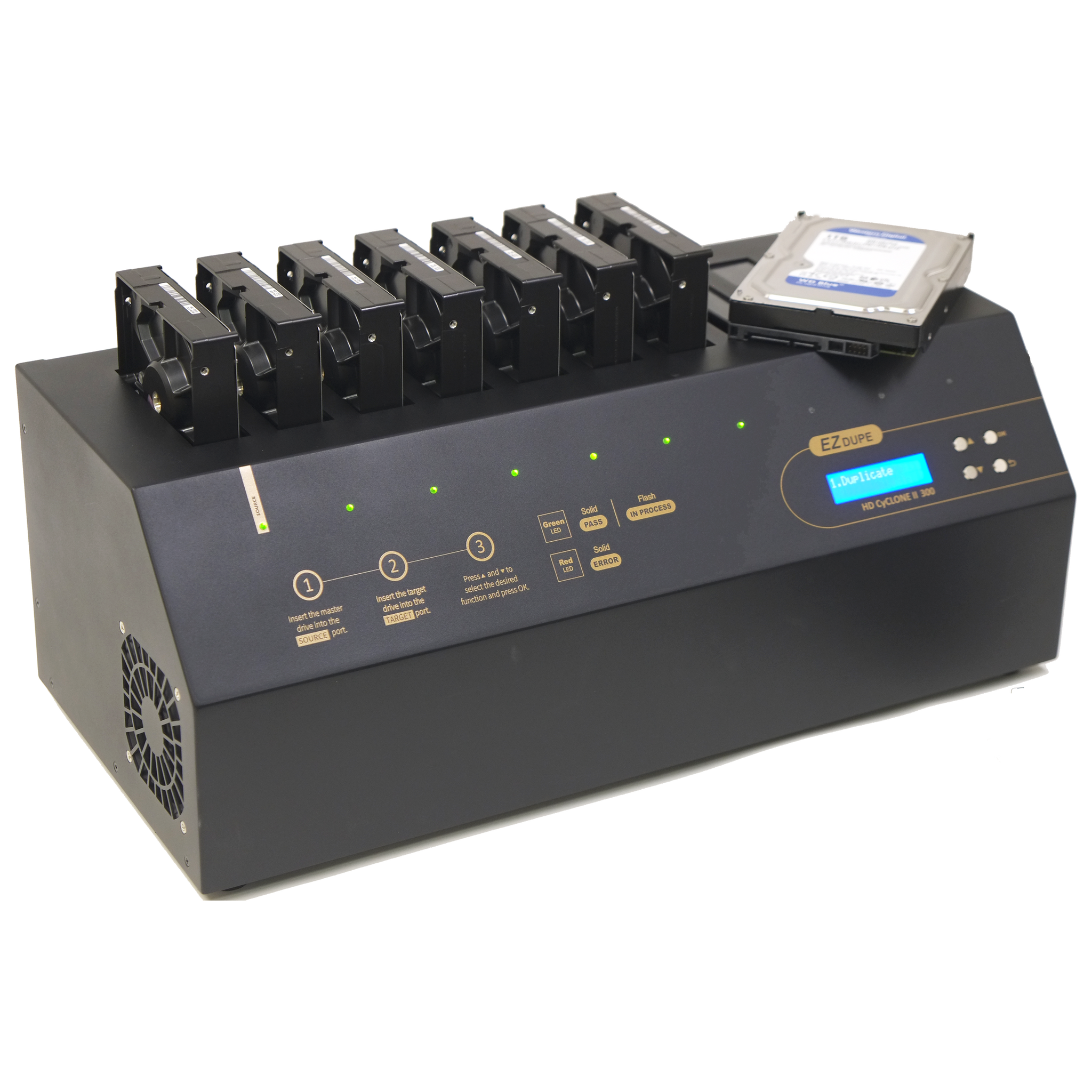

EZ Dupe 1 to 9 SATA Hard Drive Duplicator - HD Cyclone II 300 Open Platform HDD Cloner 18GB/Min (Daisy-chainable to 25 units)

EZ Dupe proudly presents the most innovative solution to any and all hard drive duplication needs for enterprise network engineers.... HD Cyclone II 300!

EZ Dupe HD Cyclone II 300 Open Platform is a commercial-grade HDD duplicator, which can copy 2.5" and 3.5" HDD or SSD with various kinds of interface. The newest version of HD Cyclone II Has increase need for customization to add more ports for duplication/erase with the added feature of daisy chain to multiple HD Cyclone II.

You can now connect up to 25 units of HD Cyclone II together to duplicate/erase up to 249 SATA Hard Drives or Solid State Drives (SSD)! Customization that starts with 1 unit of 9 ports that can be connected to additional units of 10 ports of HD Cyclone II 300 (Must be the same model of DM-HS2-2H9CP).

The HD Cyclone series feature tray-less connection on all open platform style as you can simply insert the Hard Drive on the appropriate portion on each slot. The vertical input connection for all SATA hard drive connection in the same slot that makes the connection simple and worry-free.

The Open Platform Duplicator of the HD Cyclone series has an unique designed case that does not need a tray or an adapter for SATA I, II, III Hard Drives. Just simply insert the Hard Drive Disks (HDD) vertically in to the connection. With its reliable power supply, it has not cooling down period and do continuous copying.

This series will produce mirror images of 2.5" or 3.5" SATA I or II HDD (Hard Drive Disk) / SSD (Solid State Drive) as it copies the data sector by sector from the source drive to the target drives simultaneously as it supports all brand, operating system or format of the drives.

With 300MB per second copy speed, 4 different types of Copy Modes and 8 Different Erase Modes, HD Cyclone II 300 Hard Drive Duplicator series sets a new standard in HDD duplication for 2.5" & 3.5" SATA Hard Drives!

The newest features of HD Cyclone II 300 series duplication units include an upgraded professional functions such as two new copy modes: Partitioned area copy, which allows you to copy partitioned area of the hard drive disk. Percentage copy, which allows users to set starting point of the copy and the end point.

Quality Check on Hard Drives for status and aging state of the hard drives is one of the newest feature, exclusive to HD Cyclone series by EZ Dupe. The quality check can determine drive's capacity threshold, read/write speed threshold, and ratio for bad sector.

Log File that can be download to hard drive for detail work records and production status report providing clients on important reports. Log file's information includes status on the job function performed, date/time stamp, and drive's identification numbers.

Other exciting additions include an extra DoD compliant erase mode. The original 3-pass DoD erase mode which satisfy 5220.22-M data security standard of Department of Justice. Now comes the 7-pass erase function which comply with 5220.22-M ECE data security standard.

EZ Dupe’s Cyclone II 300 Hard Drive Duplicator / Sanitizer with duplication speeds up to 300MB/s. It will produce an exact copy of HDD/ SSD drives, including partition and boot sector data.

With the latest EZ Dupe's latest innovation, the HD Cyclone II 300 can reach copy speed up to 300 MB/S (SATA2). This is the ideal backup solution for computer manufacturer and MIS department of organization or business to quickly duplicate multiple hard drives with multiple formats and interfaces.

• Features
• Highlights
• Specifications
• Download

Function and Features

Daisy Chain up to 25 units

Connect up to 25 units of HD Cyclone II (must be the same model of DM-HS2-2H9CP) to control 249 units of Hard Drive Disks / Solid State Drives.

Quality Check

Determine hard drive's aging state and hard drive's status using S.M.A.R.T. analysis.

Check for bad sector, storage capacity or speed. Use this enhanced function to determine if the M.2 NVMe modules are in optimal condition for your installation.

H3 Read Test
H5 Read/Write Test
H6 Cyclic Unused Area Write/Read Test
H7 Fake Card Test

9 Testing Criteria

• Test range
• Bad sector ratio
• Read speed threshold
• Write speed threshold
• Storage Size Capacity threshold
• Format type
• Power off times
• Power off duration
• Execution cycles

4 Testing Results

• Bad sector quantity
• Tested capacity
• Average read speed
• Average write speed

Downloadable Log File

Log File that can be download to hard drive for detail work records and production status report. The event log file's info includes status on job functions performed, date/time stamp, and the drives' identification numbers.

Copy Modes & Erase Modes

Copy Modes: Whole media copy - Comprehensive (Full Copy) Whole Media copy will copy the entire Hard Drives regardless if it has been partitioned or not. Longer Duplication Time is expected for full copy. System and Files Copy – Intelligent Copy (Quick Copy) System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the Hard Drives to save time. Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied.    All Partitioned Copy - Copy Partitioned Area Only Example: a 600GB HDD has two partitions. Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied   Percentage Copy - Setting up a starting point and end point When the file system of a Hard Drive is undefined, Percentage Copy can be used by setting up the starting and ending point of data to copy.

Erase Modes:  Quick Erase - Essential Files Erase the index of a Hard Drive within a few seconds. Full erase - Entire Drive Erase the data from a Hard Drive by overwriting each sector which is able to read/write data. 3-Pass DoD Erase Hard Drive 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense. 7-Pass DoD Erase Hard Drive 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered. Secure Erase The Secure Erase Mode is approved by N.I.S.T. (National Institute of Standard Technology) SP 800-88 for data sanitization solution that most lessens the risk to confidentiality while respecting any other constraints involved. Enhanced SSD Erase The Enhance SSD Erase Mode is approved by N.IS.T. for overwriting predetermined data patterns, data area including sectors that are no longer in use due to allocation. It erases data by using SSD's built-in ATA command. Erase HPA area Remove the HPA (Hidden Partition Area) and free up space Erase DCO area Remove the DCO (Device Configuration Overlay) partition



Adobe Acrobat Reader required to open.

---

MANUALS

To download a manual just right-click on the name and select "Save As..."

OP_Series_HDD_Duplicator_User_Manual.pdf

---

SPEC SHEET
To download a Spec-Sheet just right-click on the name and select "Save As..."
