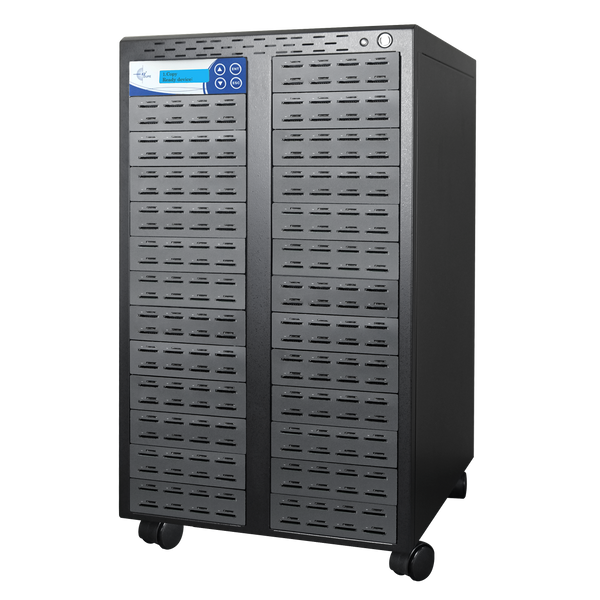

EZ Dupe Pantera 1 to 199 SD / MicroSD / TF Duplicator & Eraser (DoD Compliant)

Regular price $20,999.00 $0.00

EZ Dupe Pantera SD is the newest Secure Digital duplication systems in the market.

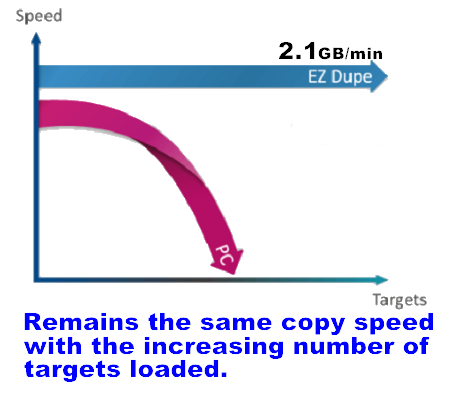

Blazing fast copy speed duplicators that can complete a large number of copies in a shorten amount of time. Each port is independent with copy speed of 35MB/S, enabling you to copy to multiple devices without losing speed.

The newest features of Pantera series duplication units include more professional functions such as two new copy modes: Partitioned area copy, which allows you to copy partitioned area of the flash memory. Percentage copy, which allows users to set starting point of the copy and the end point.

Other exciting additions include an extra DoD compliant erase mode. The original 3-pass DoD erase mode which satisfy 5220.22-M data security standard of Department of Justice. Now comes the 7-pass erase function which comply with 5220.22-M ECE data security standard.

The Pantera duplicator features asynchronous copy that allows different SD or MicroSD (TF card) port (only one port per slot can be access) to start and end copying at different times, intelligent analysis copies only the data area and can greatly improve production efficiency.

Pantera 199 copies SD/microSD (TF) memory card duplicator features user friendly 4-key control panel with LCD, high speed duplication and bit-by-bit Compare function to confirm successful copies. It can copy both SD card and microSD card. Only carefully selected and tested materials are employed in EZ Dupe's professional line of SD duplicator.

  • * Easy-to-use One-Touch copy operation.
  • * Supports SD Card and microSD card (No adapters needed)
  • * High copy speed up to 35mb/second, the fastest speed on the market.
  • * Allows measuring the actual Read and Write speed of the target memory cards.
  • * Capacity check to verify the SD card /microSD card capacity.

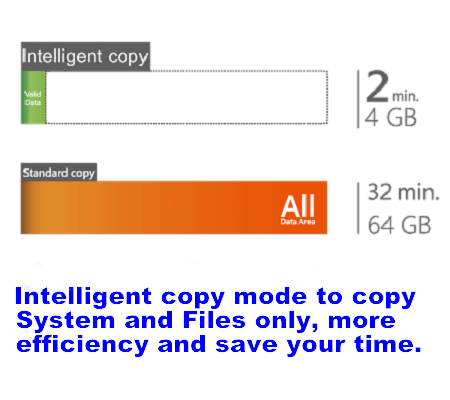

  • * Intelligent copy mode to copy System and Files only, no need to copy the whole media and allowing you to do more in less time!
  • * Whole media copy mode to copy the SD card /microSD memory card bit by bit.
  • * Standalone system; no computer required
  • * Support all file formats, file size and card/drive capacity
  • * Support Synchronous and Asynchronous copy modes, the duplicator will start copy right away once the targets inserted, you don't have to wait for each port to start at the same time.
  • DoD compliant erase function permanently deletes sensitive data.
  • * Formatting option: FAT32, exFAT.
  • * Allows to set up a password for system boot-up to prevent unauthorized use.
  • * Firmware upgradeable.
  • * Free life time technical support with toll free phone number provided.
  • Copy Modes & Erase Modes


    Copy Modes:

    Whole media copy - Comprehensive (Full Copy)

    Whole Media copy will copy the entire SD / MicroSD / TF memory card regardless of whether it has been partitioned or not. Longer Duplication Time is expected for full copy.

    System and Files Copy – Intelligent Copy (Quick Copy)

    System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the SD / MicroSD / TF memory card to save time.

    Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied.



    All Partitioned Copy - Copy Partitioned Area Only

    Example: a 600GB SD has two partitions.

    Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied



    Percentage Copy - Setting up a starting point and end point

    When the file system of a SD / MicroSD / TF memory card is undefined, Percentage Copy can be used by setting up the starting and ending point of data to copy.

    Erase Modes

    Quick Erase - Essential Files

    Erase the index of a SD / MicroSD / TF memory card within a few seconds.

    Full erase - Entire Drive

    Erase the data from a SD / MicroSD / TF memory card by overwriting each sector which is able to read/write data.

    3-Pass DoD

    Erase SD / MicroSD / TF memory card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

    7-Pass DoD

    Erase SD / MicroSD / TF memory card 7 times complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.






    Operating Type
    Standalone (No PC Required)
    Number of Copies
    Up to 199 SD/MicroSD copies
    Display
    2 x 16 Backlit
    Supported Media
    • Secure Digital SD
    • SDHC
    • SD Pro
    • MicroSD (TF Card)
    • SD HS
    • WI-FI SD
    • Super HS SD
    • Mini SD*
    • Mini SD Pro*

    (*Adapter Required for Mini SD)

    Transfer Speed
    Up to 35mb per second (max speed depends on SD)
    Copy Mode
    Synchronous or Asynchronous
    Copy Area
    Full Copy - Whole Media
    Quick Copy - Essential Files
    All Partitioned Copy - Partitioned area only

    *Percentage Copy - Set up Starting & End point copy
    *New Feature exclusive to EZ Dupe
    Format Supported on Quick Copy
    Window: exFAT, FAT16/32, NTFS
    Linux: EXT2 / EXT3 / EXT4
    MacOs: HFS, HFS+, HFSX
    Format Modes
    FAT32 - For SD over 2GB but less than 32GB
    exFAT - For SD over 32GB
    Compare Modes
    Compare: compare the copied target devices against the source for accuracy
    Copy + Compare: allows duplicator to start Copy process first, then follow with "Compare" process immediately.
    Erase Mode
    Full Erase - Whole Media
    Quick Erase - Essential Files
    DoD 3-pass - 3 times erase in 5220.22-M standard
    DoD 7-pass - 7 times erase in 5220.22-M ECE standard
    System Memory
    128 MB
    Power Requirement
    115V - 230V
    Operating Temperature
    41°F - 122°F
    Operating Humidity
    15% - 90%
    Model
    DM-FU5-8CB199TC
    Gross Weight
    80 lbs
    Package Dimensions
    31 x 23 x 22"
