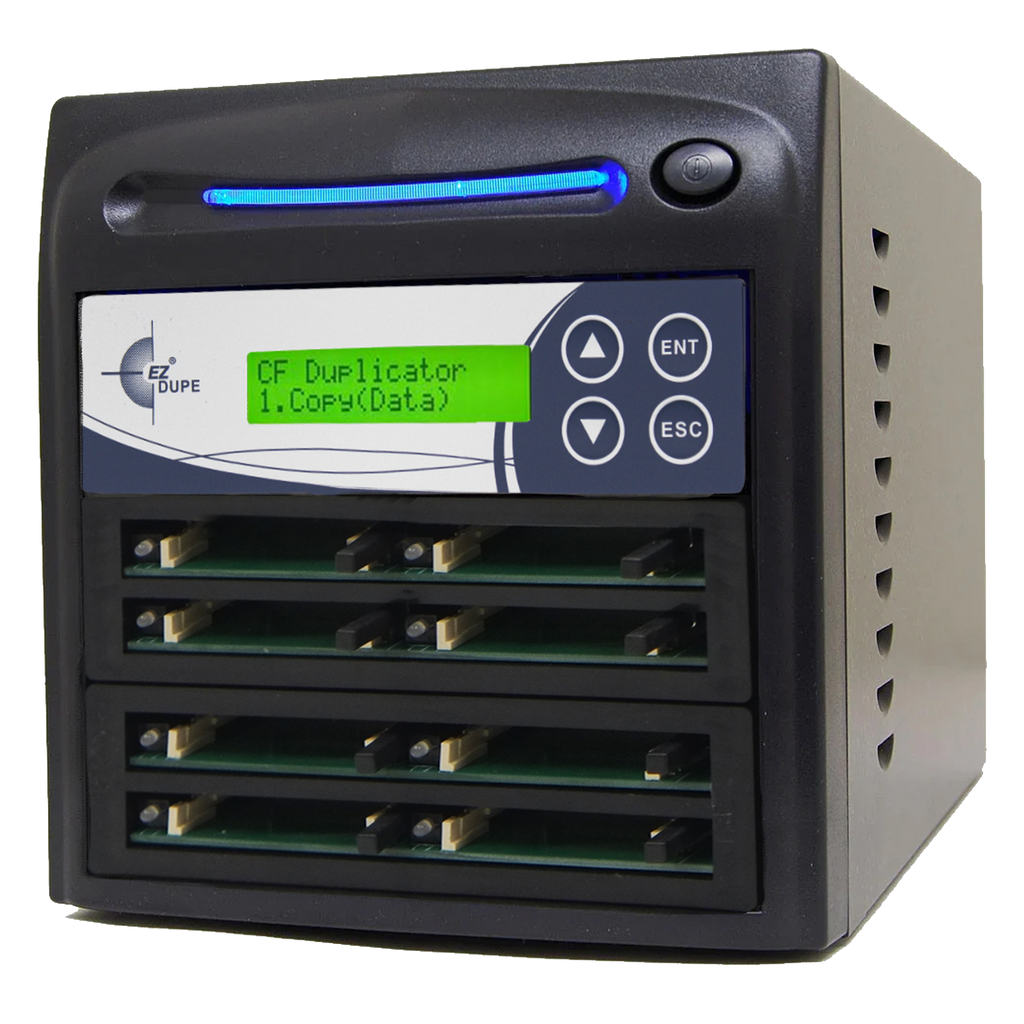

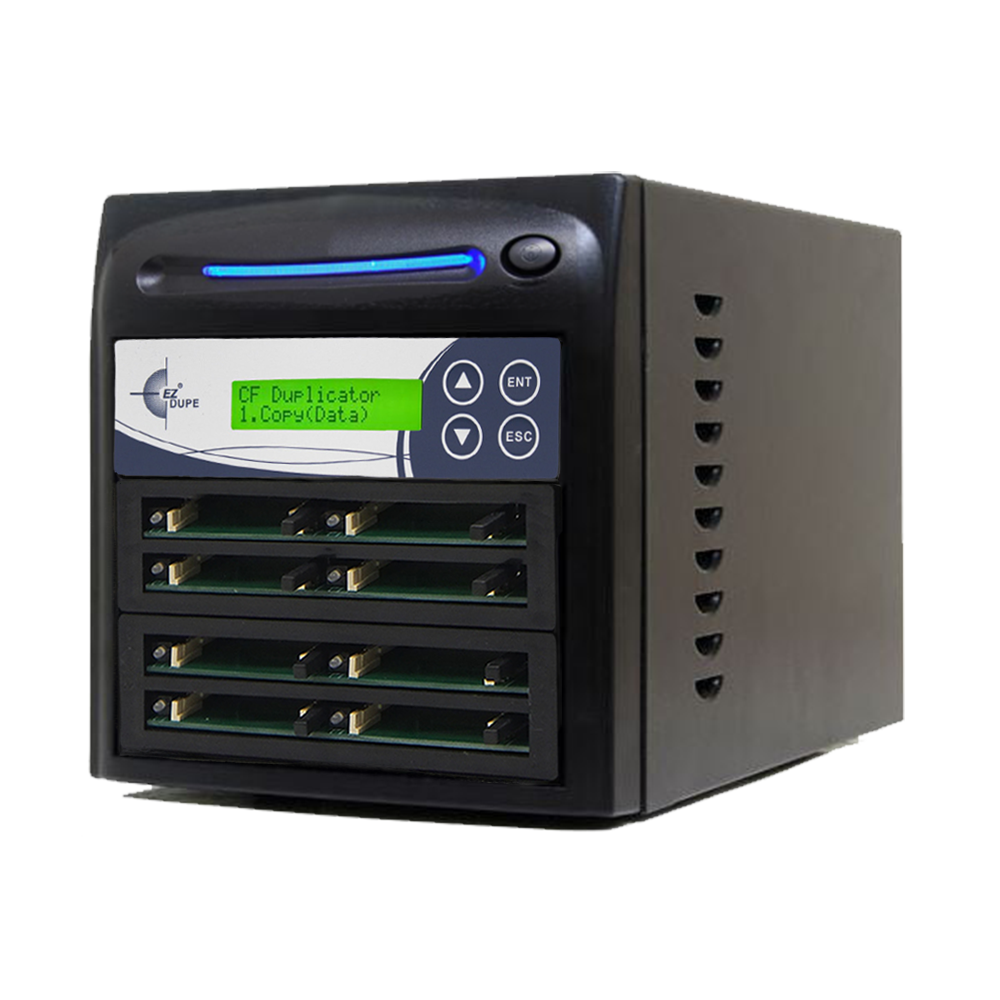

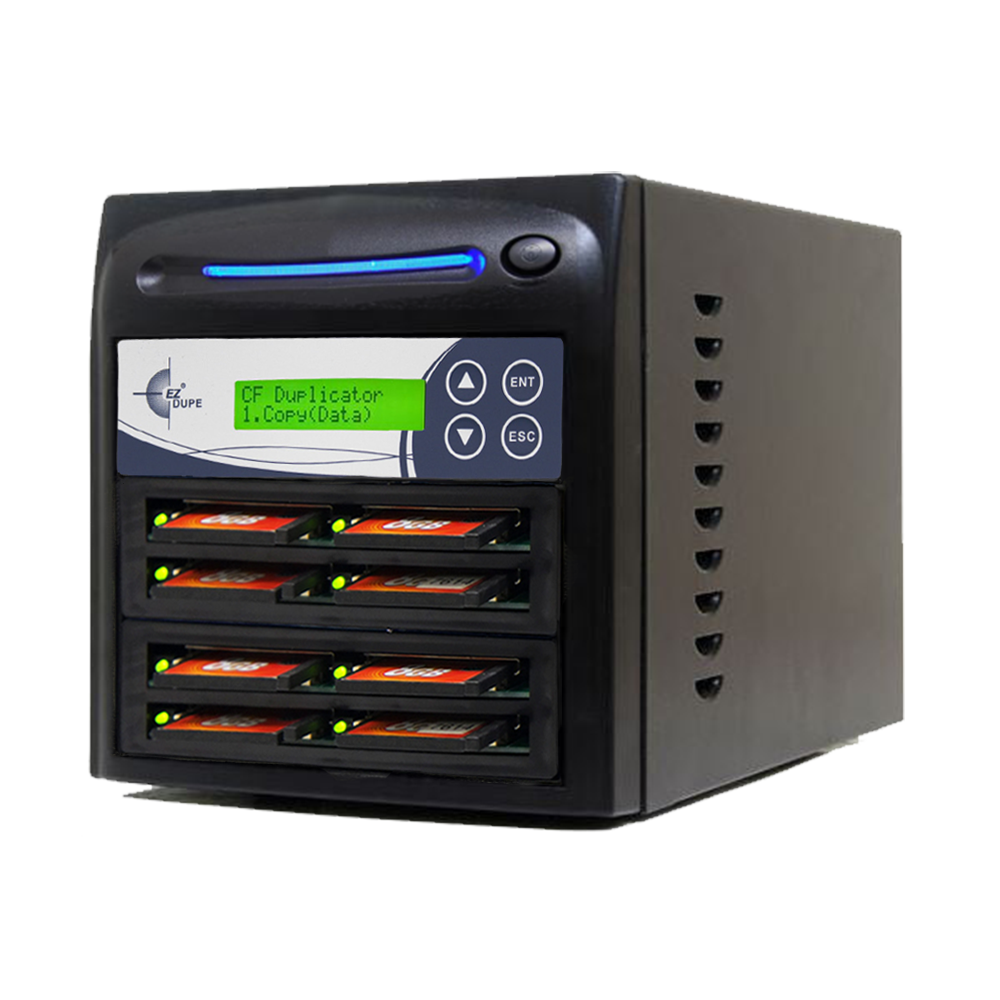

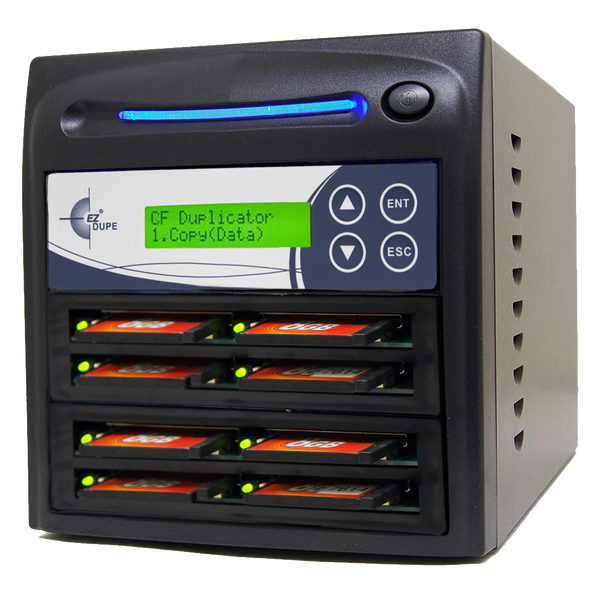

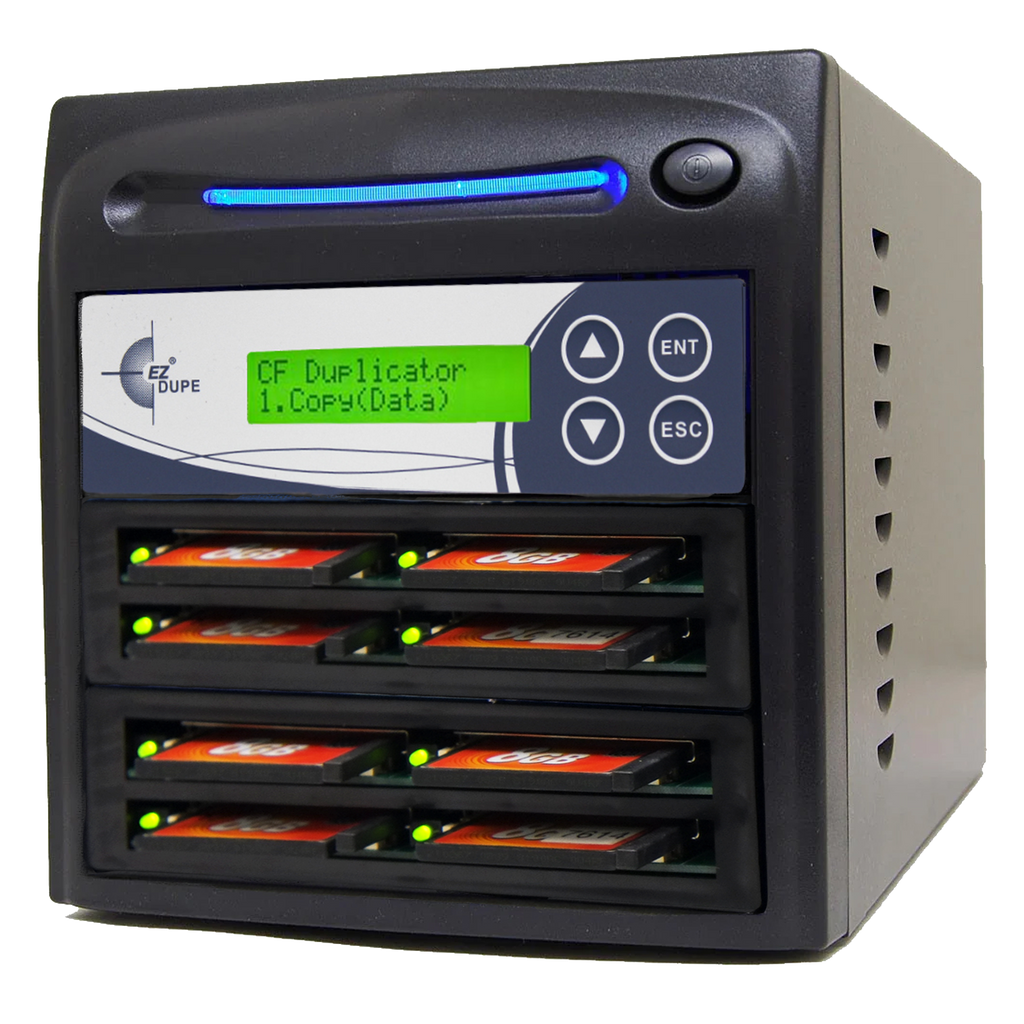

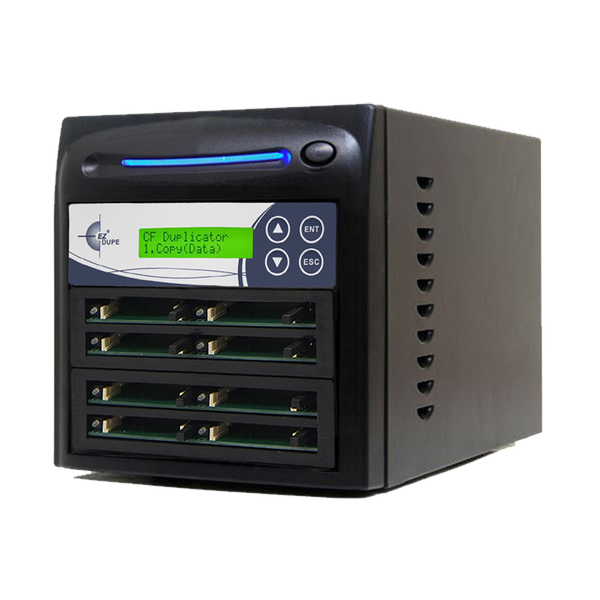

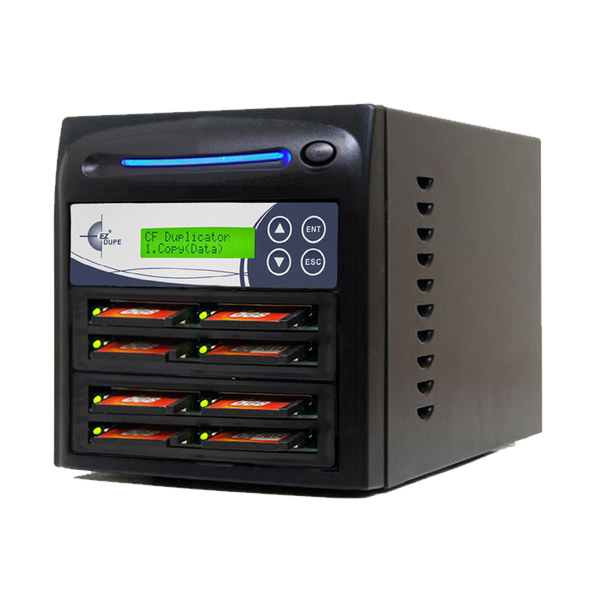

EZ Dupe Pantera 1 to 7 CF / MicroDrive Duplicator & Eraser (DoD Compliant)

$719.00

EZ Dupe Pantera CF is the newest CompactFlash (CF) and MicroDrive duplication systems in the market.

Blazing fast copy speed duplicators that can complete a large number of copies in a shorten amount of time. Each port is independent with copy speed of 35MB/S, enabling you to copy to multiple devices without losing speed.

The newest features of Pantera series duplication units include more professional functions such as two new copy modes: Partitioned area copy, which allows you to copy partitioned area of the flash memory. Percentage copy, which allows users to set starting point of the copy and the end point.

Other exciting additions include an extra DoD compliant erase mode. The original 3-pass DoD erase mode which satisfy 5220.22-M data security standard of Department of Justice. Now comes the 7-pass erase function which comply with 5220.22-M ECE data security standard.

EZ Dupe's professional line of Compact Flash Series CF Duplicators employ only carefully selected and tested materials.

Highlights
Features
Specifications
Download

* Easy-to-use One-Touch copy operation

* Support CompactFlash (CF) and MicroDrive

* High copy speed up to 35mb/second, the fastest speed on the market

* Intelligent copy mode to copy System and Files only, no need to copy the whole media and allowing you to do more in less time!

* Whole media copy mode to copy the CF card / MicroDrive memory card card bit by bit

* 4 Different Erase Modes (including DoD 3-pass & 7-pass)

* Allows measuring the actual Read and Write speed of the target memory cards

* Capacity check to verify the CF card / MicroDrive memory card capacity

* Standalone system; no computer required

* No warm-up and cool-down

* User friendly interface and simple operation.

* Real-time display of detailed information on bright LCD screen

* Support all file formats, file size and card/drive capacity.

* Support Synchronous and Asynchronous copy modes. With improved SOTA technology, CF duplicator can do Asynchronous copy even if the source data size is bigger than duplicator system memory

* Real time copy and compare technology (copy one section and compare, then copy another section and compare again) to reach higher efficiency of copy compare process.

* One-year warranty on parts and labor

* Free life time technical support with toll free phone number provided

Copy Modes & Erase Modes

Copy Modes:

Whole media copy - Comprehensive (Full Copy)

Whole Media copy will copy the entire CF / MicroDrive memory card regardless of whether it has been partitioned or not. Longer Duplication Time is expected for full copy.

System and Files Copy – Intelligent Copy (Quick Copy)

System and Files Copy copies only stored system and files data, not unused space area. Intelligent Copies that duplicates essential files in the CF / MicroDrive memory card to save time.

Example: Partition 1 has a capacity of 158GB with 58GB of data in it. Only 58GB of data will be copied while unused space area will not be copied.

All Partitioned Copy - Copy Partitioned Area Only

Example: a 600GB CF has two partitions.

Partition 1 with 158GB and Partition 2 with 200GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied

Percentage Copy - Setting up a starting point and end point

When the file system of a CF is undefined, Percentage Copy can be used by setting up the starting and ending point of data to copy.

Erase Modes:

Quick Erase - Essential Files

Erase the index of a CF / MicroDrive memory card within a few seconds.

Full erase - Entire Drive

Erase the data from a CF / MicroDrive memory card by overwriting each sector which is able to read/write data.

3-Pass DoD

Erase CF / MicroDrive memory card 3 times complying with the 5220.22-M data erase security standard of the U.S. Department of Defense.

7-Pass DoD

Erase CF / MicroDrive memory card complying with the 5220.22-M ECE data erase security standard of the U.S. Department of Defense to ensure the data is unable to be recovered.

Operating Type	Stand Alone
Number of Copies	Up to 7 CompactFlash Copies
Display	2 x 16 Backlit
Supported Media	Compact Flash Type 1, 2, MicroDrive
Transfer Speed	Up to 35mb per second (max speed depends on CF)
Copy Mode	Synchronous or Asynchronous
Copy Area	Full Copy - Whole Media Quick Copy - Essential Files All Partitioned Copy - Partitioned area only Percentage Copy - Set up Starting & End point copy New Feature exclusive to EZ Dupe
Format Supported on Quick Copy	Window: exFAT, FAT16/32, NTFS Linux: EXT2 / EXT3 / EXT4 MacOs: HFS, HFS+, HFSX
Format Modes	FAT32 - For CF over 2GB but less than 32GB exFAT - For CF over 32GB
Compare Modes	Compare: compare the copied target devices against the source for accuracy Copy + Compare: allows duplicator to start Copy process first, then follow with "Compare" process immediately.
Erase Mode	Full Erase - Whole Media Quick Erase - Essential Files DoD 3-pass - 3 times erase in 5220.22-M standard DoD 7-pass - 7 times erase in 5220.22-M ECE standard
System Memory	128 MB
Power Requirement	115V or 230V
Operating Temperature	41°F - 122°F
Operating Humidity	15% - 90%
Model	DM-FU0-S8CF7C
Gross Weight	20 lbs
Package Dimensions	16 x 12 x 17"

Adobe Acrobat Reader required to open.

MANUALS

To download a manual just right-click on the name and select "Save As..."

CF_Duplicator_Manual.pdf

SPEC SHEET
To download a Spec-Sheet just right-click on the name and select "Save As..."

CF_Spec_Sheet.pdf

The functions of CF Duplicator and SD Duplicator are similar
